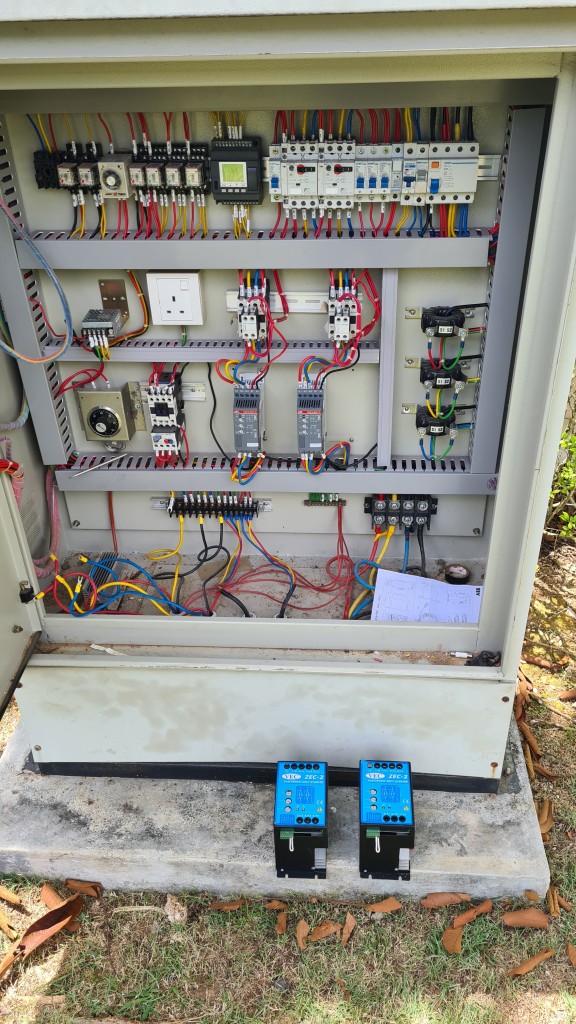

Soft Starter and It’s role in a Pump Control Panel

Soft starters are devices that are used to control the starting and stopping of electric motors. They are widely used in a variety of applications, including pumps, compressors, and fans, among others. Soft starters are different from variable frequency drives (VFDs) in that they only control the starting and stopping of the motor, whereas VFDs can also control the speed of the motor.

One of the primary advantages of using a soft starter over a VFD is that soft starters are often more cost-effective. They are also simpler to install and require less maintenance than VFDs, making them an ideal choice for applications where precise speed control is not required.

When it comes to controlling water pumps, soft starters are often the preferred option due to their ability to reduce the initial current surge that occurs when the motor is started. This current surge can cause damage to the motor and other electrical components, and can also result in high energy consumption. By reducing the current surge, soft starters can help extend the life of the motor and reduce energy costs.

If you are currently using a control panel that does not have a soft starter, it is highly recommended that you upgrade to one. By doing so, you can enjoy a number of benefits, including reduced energy consumption, increased motor life, and improved system reliability. Additionally, many soft starters come with built-in protections that can help prevent damage to the motor and other electrical components.

One of the advantages of using a soft starter in a control panel is that it eliminates the need for a transformer for isolation. Soft starters are designed to operate without the need for a transformer, which can simplify the control panel design and reduce the overall cost.

In traditional control panel designs, a transformer is often used to isolate the control circuit from the power circuit. This is done to protect the control circuit from high voltage or current spikes that can occur in the power circuit. However, using a transformer can add complexity to the control panel design and increase the overall cost of the system.

By using a soft starter in the control panel, you can eliminate the need for a transformer and simplify the design. Soft starters are designed to provide the necessary isolation and protection for the control circuit, without the need for a separate transformer. This can help reduce the size and cost of the control panel, while also improving the overall reliability of the system.

In addition to eliminating the need for a transformer, soft starters also offer other benefits for control panel design. They can reduce the amount of wiring required, as they typically only require a few connections to be made. They can also be easily integrated into existing control systems, making them a flexible and adaptable solution for a wide range of applications.

Overall, using a soft starter in a control panel can simplify the design, reduce costs, and improve the reliability of the system. If you are considering upgrading your control panel for a water pump or other electric motor, it’s worth considering the benefits of using a soft starter.
